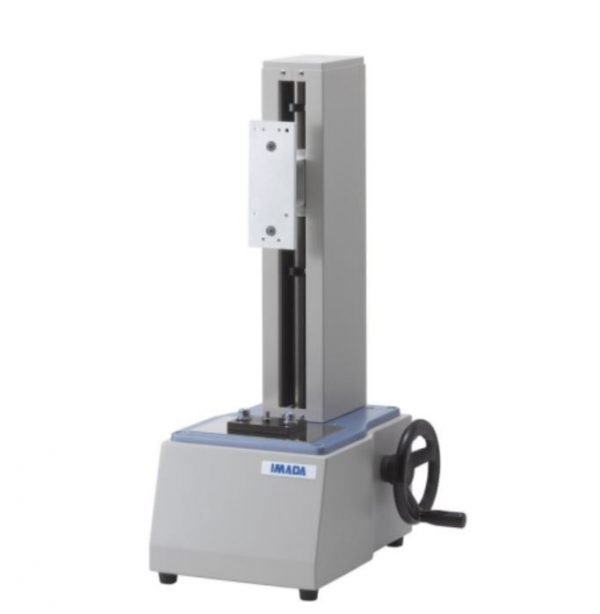

HV-500NⅡ

Giá đỡ máy đo lực trục dài IMADA
HV-500 II

Giá: Liên hệ

Mã:.HV-500 II

Nhà sản xuất:IMADA

Tình trạng:Liên hệ

Cho phép đặt hàng trước

Xem thêm:

Hotline+84 243 202 3000

Thông số kỹ thuật

Feature

Realizes precision measurement with constant testing position
Ideal for measurement of larger or extensible samples due to the longer stroke
Allows stable measurement of tension and compression testing due to the handle operation
Handles a wide range of testing applications to meet your testing requirements with options such as -S (length scale)

Model	HV-500NⅡ
Capacity	500N
Loading Method	Trapezoidal screw with 3mm lead
Travel Rate	2mm/1 turn
Max. Sample Height	Approx. 240mm
Table Material	Stainless Steel
Weight	Approx. 10kg
Accessories	Operation manual, tools
Accessories	GF-1 (Grip mounting adapter)
Available Options	-L: Extended stroke by 200mm -S: Length scale
