Newly improved inspection efficiency thanks to UIS infinity-corrected optics, which allow high clarity observation with flat, bright, even images right to the edge of the visual field (F.N.22)*.
* When using eyepiece WH10x series.
• To meet high-magnification observation requirements, magnification settings extend from 5x to 100x.
• Suitable for both brightfield and simple polarizing observations. The polarizer can be rotated through 90°, allowing optimum contrast control.
• As well as the standard 6V 30W halogen lamp, users can select a 100W fiber light source, high-brightness images, even of dark samples.
• Reflected light illuminator with aperture stop. Optimum contrast is obtained according to objective magnification and observation method. Handy filter pockets are provided, as various types of f25 filters can be used besides the polarizer.

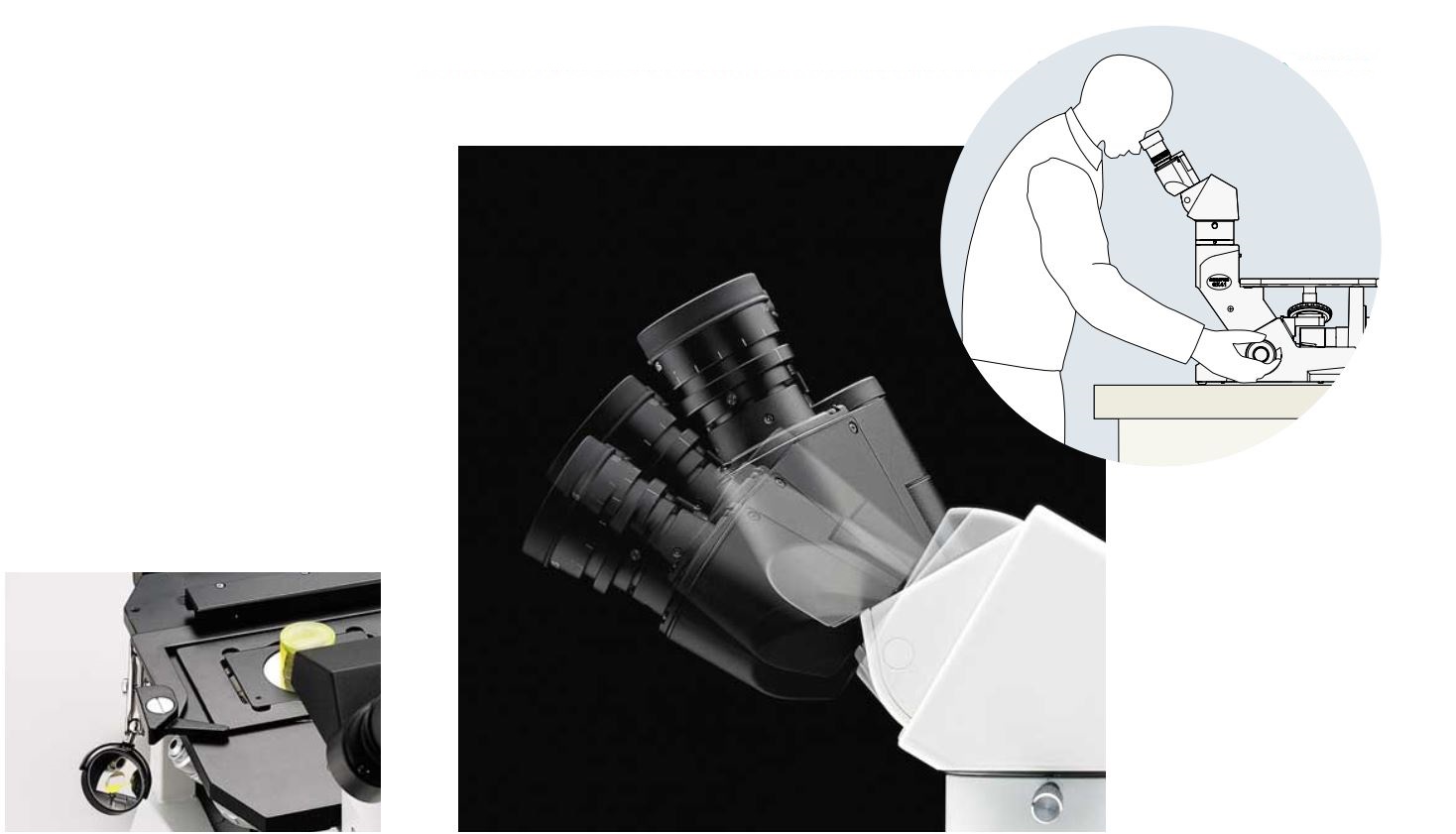

• Different types of tilting binoculars are available, so the tilting angle can be freely changed. Observations can be made quickly and easily, even while standing.
• The 6V30W halogen lamp is pre-centered, making manual centering unnecessary.
• The coaxial coarse and fine focus handle enables focusing without changing hands.
• The revolving nosepiece accepts four objectives, allowing quick exchange among them.
• With the optional stage mirror (CK40M-MS) attached, the user can easily confirm the observation position of the sample (and the objective in use) by only a slight shift of the eye, from the eyepiece to the mirror.

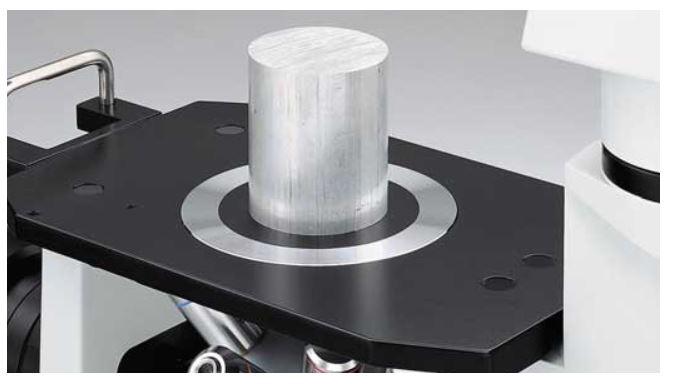

Compact, practical design offering all necessary functions for inspecting metallurgical samples, large metal parts and electronic components
Optical System | UIS2 Optical System (Infinity-corrected) | ||
Microscope Frame | Observation Method | BF/KPO* | |
Reflected/Transmitted | Reflected | ||
Illuminator | – | ||
Illumination System | Reflected Light | 30W Halogen or Fiber Light Guide (Light source:100W) | |
Transmitted Light | – | ||
Focus | Motorized /Manual | Manual Revolving Nosepiece Up/Down Movement | |
(Stage Stationary Type) | |||
Stroke | 9 mm | ||
Resolution/Fine Adjustment Sensitivity | Fine Stroke per Rotation 0.2 mm | ||
Revolving Nosepiece | Motorized Type | – | |
Manual Type | Quadruple for BF | ||
Medium Variable Magnification | – | ||
Camera Port | – | ||
Stage | Stroke | 120(X)x78(Y)mm | |
Observation Tube | Standard Field (Field Number 18) | Inverted Image | Tilting Binocular Observation Tube |
Standard Field (Field Number 20) | Inverted Image | Binocular/Trinocular/Tilting Binocular Observation Tube | |
Wide Field (Field Number 22) | Inverted Image | Binocular/Trinocular/Tilting Binocular Observation Tube | |
Erect Image | – | ||
Super Wide Field (Field Number 26.5) | Inverted Image | – | |
Erect Image | – | ||
Option | – | ||
Dimensions | 236(W)x624(D)x407(H)mm | ||
Weight | 10 kg (in Standard Combination) | ||
Remark | *Simple Polarized Light Observation |
