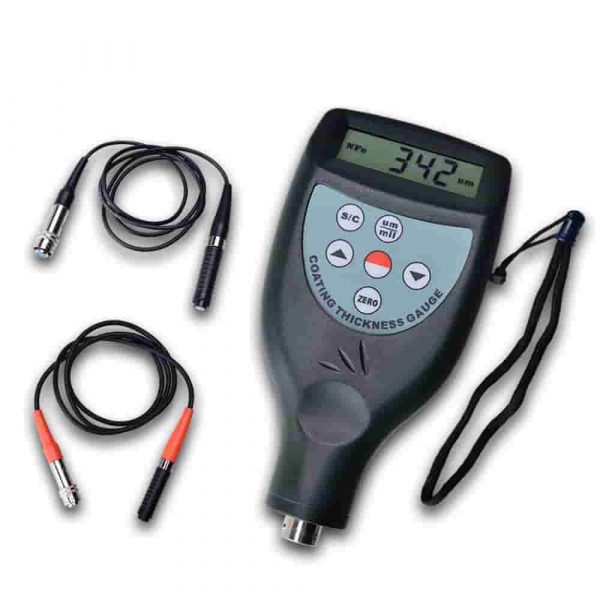

A coating thickness meter that conquers the difficulties of non-destructive measuring of coating thickness on both magnetic and non-magnetic base that can be used on many applications even on applications that require greater precision. It is the most advanced and top quality rugged meter that uses magnetic induction and eddy current principle to measure thickness of magnetic coating on non-magnetic base. Lightweight and equipped with F & NF probes it carries out high-speed and accurate results on either single or continuous measuring mode and covering a wide range of 0~1250um or 0~50mil. The F & NF probes cable is long enough to measure the thickness of the coating of hard-to-reach areas.
Features:
Operating principle | Magnetic induction/eddy current (F/NF) |
Display | 4 Digits, 10mm LCD |
Measuring Range | 0-1250um/0-50mil |
Resolution | 0.1um (0~99.9um), 1um (over 100um) |
Accuracy | ±1-3%n or ±2.5um or 0.1mil(which ever is greater) |
Power supply | 4 x 1.5V AAA (UM-4) battery |
Operating Conditions | 0~50°C (32°F-104°F) Temperature, <80% Humidity with 2 separate probe(s) |
Dimensions | 126 x 65 x 27mm |
Weight | 81g (not including battery) |
