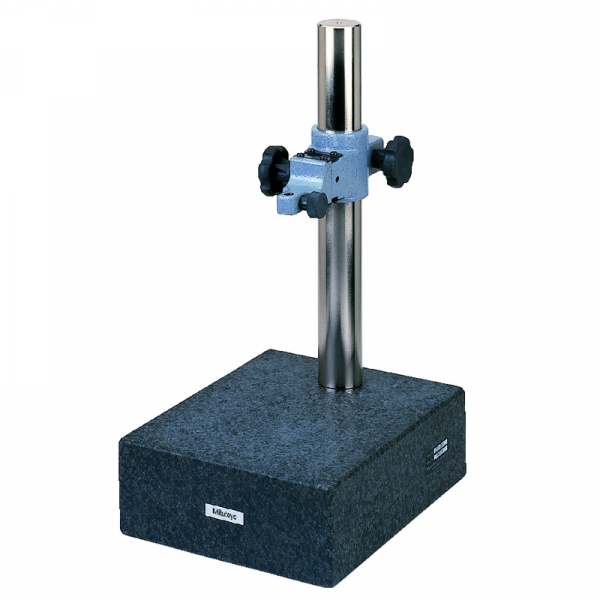

Chân đế gá đồng hồ so 215-153-10
200x250mm

Liên hệ
Đế 215-153-10
Mitutoyo
Liên hệ

Cho phép đặt hàng trước

Catalogue

Chân đế gá đồng hồ so 215-153-10

 Thông số chân đế 215-153-10

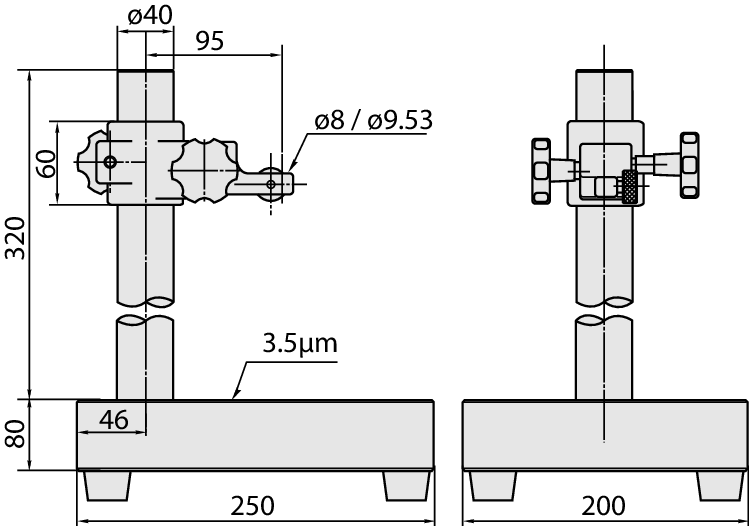

215-153-10.eps

Column Ø:
40 mm
Max. measurement height:
250 mm
Fine adjustment:
1 mm
Stem hole ø:
ø 3/8″ / 9.53 mm , 8 mm with bush (standard accessory)
Table flatness:
3.5 µm
Perpendicularity table-stem hole:
0.2/100 mm/mm
Mass:
16 kg
FEATURES
Mitutoyo’s Granite Comparator Stands are basic building-blocks for the assembly of special-purpose, precision measuring equipment. By mounting precision measuring instruments such as Digimatic indicators, Mu-Checker Cartridge Heads, and Linear Gages onto the stands, it is possible to handle all manner of measuring applications. The rigid granite base is free from burrs, pileups, rust, and deterioration over time.

Xem thêm Chân đế Mitutoyo tại đây.
